Crystalline Waterproofing Powder Concrete Admixture - CRYSTAL PW 25

Description

CRYSTAL PW 25 is a hydrophilic crystalline waterproofing admixture designed to enhance the durability and longevity of concrete structures. Utilizing advanced crystal technology, CRYSTAL PW 25 reacts with cement and water to initiate a catalytic process. This reaction forms a protective crystalline network within the concrete's pores, capillaries, and cracks, significantly reducing permeability.

The long-term reactivity of CRYSTAL PW 25 endows the concrete with adaptive self-healing properties, effectively countering deterioration and maintaining structural integrity over time. As a Permeability Reducing Admixture for Hydrostatic Conditions (PRAH), it offers superior performance in challenging environments, ensuring robust and reliable waterproofing solutions.

Fields of Application

• Foundations, basements.
• Tunnels and subway systems.
• Pre-cast and shotcrete.
• Water and Wastewater structures.
• Water treatment plant.
• Swimming pools.
• Elevator pits.
• Parking structures.

Features and Benefits

• Protects the concrete against negative and positive water pressure (14 bars).
• Resistant to extreme hydrostatic pressure.
• Highly resistant to corrosive chemicals.
• Provides permanently active waterproofing. During the curing time, it creates insoluble nano structural crystal into the capillary cracks.
• Non toxic. Safely used in water tanks.
• Protects against water, chloride, and sulfate ingress; increases resistance to chemical attacks
• Water vapor permeable. It allows the concrete to breath.
• Easily added to ready-mix truck or central mixer.
• Self-seals hairline cracks up to 0.5 mm.
• It becomes an integral part of the concrete and improves the durability of the concrete.
• Provides long term protection even though concrete surface is damaged.
• Does not need to any additional waterproofing applications.
• Does not harm for human health and environment.

Application Procedure

Application Method

Dry Batch Operation:

Add the required quantity of CRYSTAL PW 25 powder form to the ready-mix truck. Drive the truck under the the batch plant and add 60% of the required water with 150-250 kg the large aggregate. Then mix for 2-3 minutes to ensure the CRYSTAL PW 25 is distributed evenly throughout the pre- mix. Add the remaining materials to the back of the truck in accordance with standard batching practices and the mix design requirements.

Central Mix Operation:

The aggregates, sand, cementitious materials, and water are to be mixed first in accordance with standard batching practices and the mix design requirements. Add CRYSTAL PW 25 to water in a large bucket to a ratio of 1:1 until reaching an easily pourable mix. Pour the required amount of mixed CRYSTAL PW 25 into the truck and mix for at least 5 minutes to ensure an even distribution of the material throughout the concrete mix by taking into consideration the designed w/c ratio. If unsure, consult with Baumerk technical team.

Precast Batch Plant:

Add the CRYSTAL PW 25 to the aggregate and sand mix for 3 minutes before adding cement & water.

Note : CRYSTAL PW 25 is compatible with all cement types, supplementary cementitious materials, admixtures, and fibers. A concrete trial mix is necessary to determine the actual plastic properties.

Dosage

CRYSTAL PW 25 is added 0,8-1,0 % by weight of cement. For assistance in determining the appropriate dosage rate and additional information, please consult a Baumerk representative.

Consumption

CRYSTAL PW 25 is added 0,8-1,0 % by weight of cement. For assistance in determining the appropriate dosage rate and additional information, please consult a Baumerk representative.

Packaging

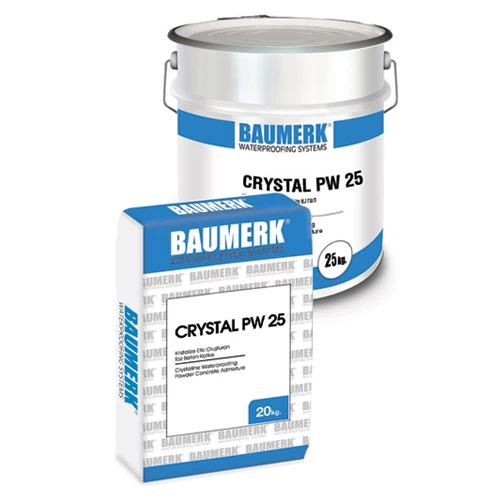

CRYSTAL PW 25 is available in 20 kg kraft bags or 25 kg metal pail

Shelf Life

12 months in original, unopened package.

Storage

Store in dry area between +5°C and +35°C. Protect from heat, freezing and direct sunlight.

Cautions / Limitations

• Water/Cement ratio should be ≤ 0,55.
• It may be harmful with skin contact.
• Do not apply in freezing conditions or during precipitation.
• Protect applied materials from rain, freezing, foot traffic and continuous high humidity until completely dry.
• Do not use when air and surface temperatures are below +5°C and above +35°C.
