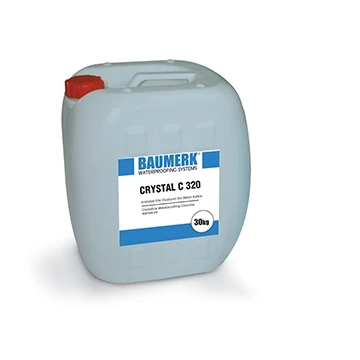

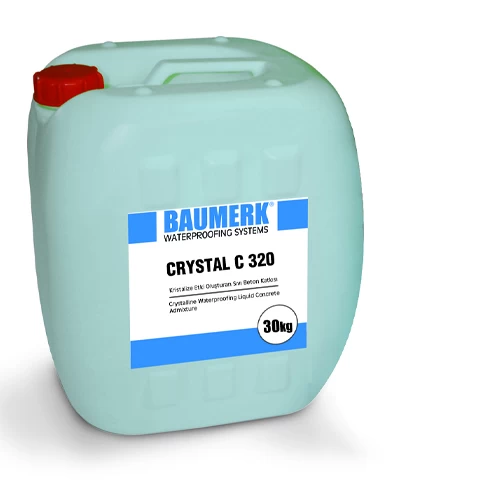

Crystalline Waterproofing Liquid Concrete Admixture - CRYSTAL C 320

Description

CRYSTAL C 320 is a hydrophilic crystalline waterproofing admixture designed to enhance the durability and longevity of concrete structures. Utilizing advanced crystal technology, CRYSTAL C 320 reacts with cement and water to initiate a catalytic process. This reaction forms a protective crystalline network within the concrete's pores, capillaries, and cracks, significantly reducing permeability. The long-term reactivity of CRYSTAL C 320 endows the concrete with adaptive self-healing properties, effectively countering deterioration and maintaining structural integrity over time. As a Permeability Reducing Admixture for Hydrostatic Conditions (PRAH), it offers superior performance in challenging environments, ensuring robust and reliable waterproofing solutions.

Fields of Application

• Foundations, basements.
• Tunnels and subway systems.
• Pre-cast and shotcrete.
• Water and Wastewater structures.
• Water treatment plant.
• Swimming pools.
• Elevator pits.
• Parking structures

Features and Benefits

• Protects the concrete against negative and positive water pressure (14 bars).
• Resistant to extreme hydrostatic pressure.
• Highly resistant to corrosive chemicals.
• Provides permanently active waterproofing. During the curing time, it creates insoluble nano structural crystal into the capillary cracks.
• Non toxic. Safely used in water tanks.
• Protects against water, chloride, and sulfate ingress; increases resistance to chemical attacks
• Water vapor permeable. It allows the concrete to breath.
• Easily added to ready-mix truck or central mixer. ▪ Self-seals hairline cracks up to 0.5 mm.
• It becomes an integral part of the concrete and improves the durability of the concrete.
• Provides long term protection even though concrete surface is damaged.
•  Does not need to any additional waterproofing applications.
•  Does not harm for human health and environment.

Application Procedure

Application Method

Add CRYSTAL C 320 to the concrete during batching at a dosage of 0.8–1.5 liter of total cementitious material weight using automatic dispensers. Ensure to shake CRYSTAL C 320 well before use. Workability time is approximately 45 minutes after the addition of CRYSTAL C 320.

Note : CRYSTAL C 320 is compatible with all cement types, supplementary cementitious materials, admixtures, and fibers. A concrete trial mix is necessary to determine the actual plastic properties.

Dosage

0.8-1.5% by weight of cement. For assistance in determining the appropriate dosage rate and additional information, please consult a Baumerk representative.

Consumption

If the Water/Cement ratio is < 0,55; CRYSTAL C 320 is added 2% by the weight of cement on the mixture. Water/Cement ratio should not be up to 0,55.

Package

CRYSTAL C 320 is available in 30 kg plastic drum or 1000 kg IBC

Shelf Life

12 months in original, unopened package.

Storage

Store in dry area between +5°C and +35°C. Protect from heat, freezing and direct sunlight

Cautions / Limitations

• Water/Cement ratio shouldn’t be up to 0,55.
• Use retarder when using CEM II or III Portland cement.
•  It may be harmful with skin contact.
• Do not apply in freezing conditions or during precipitation.
•  Protect applied materials from rain, freezing, foot traffic and continuous high humidity until completely dry.
• Do not use when air and surface temperatures are below +5°C and above +35°C.
