Cement-Acrylic Based, Two Component, Waterproofing Material for Negative-Positive Applications - CHIMEX 227

CHIMEX 227

Description

Cement and acrylic based, two component, resistant to positive and negative water pressure waterproofing material with capillary effect.

Fields of Application

• Indoor and outdoor for horizontal and vertical applications,
• Wet areas such as bathroom, kitchen, balcony,
• Foundation wall water insulation,

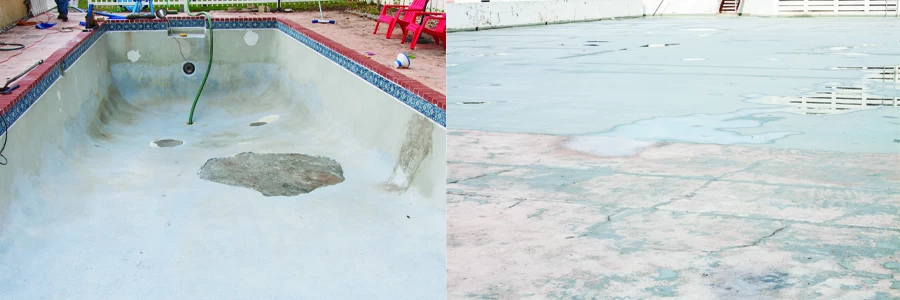

• Water tanks and swimming pools,
• Potable water tanks,
• Elevator pits,
• Isolation of fl ower garden areas,
• Irrigation channels, manholes, concrete pipes,
• To protect concrete from water, carbonation and salts.

Features and Benefits

• Resistant to negative and positive water pressure. 4 bars for negative, 7 bars for positive pressure.
• High durability.
• Has capillary effect.
• Provides long working time.
• Does not shrink and crack.
• Water vapor permeable.
• High adhesion performance.
• Has high freeze-thaw stability.
• Safely used in potable water tanks.

Application Procedure

Preparation of Substrate

Application substrate must be sound, mainly smooth, clean and fi ne pored. The application surface must be clear of materials which prevent bonding, such as oil, rust, paint, silicone, curing agents, detergents and paraffi n wax. Weak parts of the concrete must be repaired, plasters that are not well adhered must be removed, the surface must be fl at and sound, static cracks on the building must be repaired with a plaster containing LATEX or REPAMERK 301. Holes that have water outfl ow must be fi lled with WATERSHOCK. The surface must be saturated with water and must be kept moist during the application. On vertical and horizontal corners fi llet with min. 4 cm radius must be applied.

Application Method

Pour liquid Part B and 5-5,5 L water poured into mixing container and slowly added powder Part A. Continue mixing for at least 3-5 minutes until a homogenous and uniform mixture is obtained. Wait for 3-5 minutes and mix again for approximately 30 seconds and becomes ready to use. Prepared CHIMEX 227 mixture is applied by brush or spray machine as two or three layers. Brush application direction in each layer must be perpendicular to each other. The surface must be protected from direct sunlight and prevented from drying quickly. It is recommended to use a mesh between the layers. Using mesh increases the reinforcing properties of the product.

Consumption

1,20 - 1,3 kg/m² is applied for each layer. Recommended at least 2 coats application. If needed high protection, 3 coats application can be applied. Maximum application wet thickness is 1,3 mm for each coats.

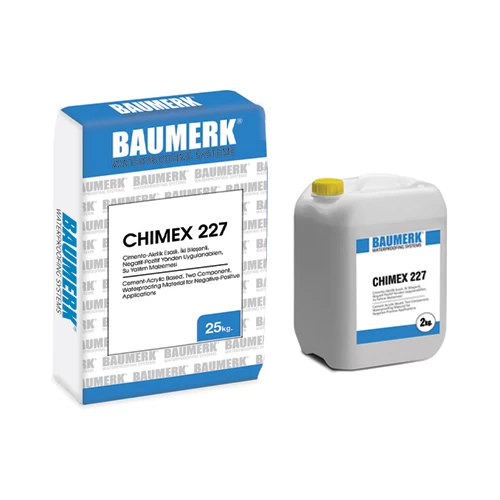

Package

27 kg set

Powder A component: 25 kg kraft bag

Liquid B component: 2 kg plastic drum
